Construction Staking

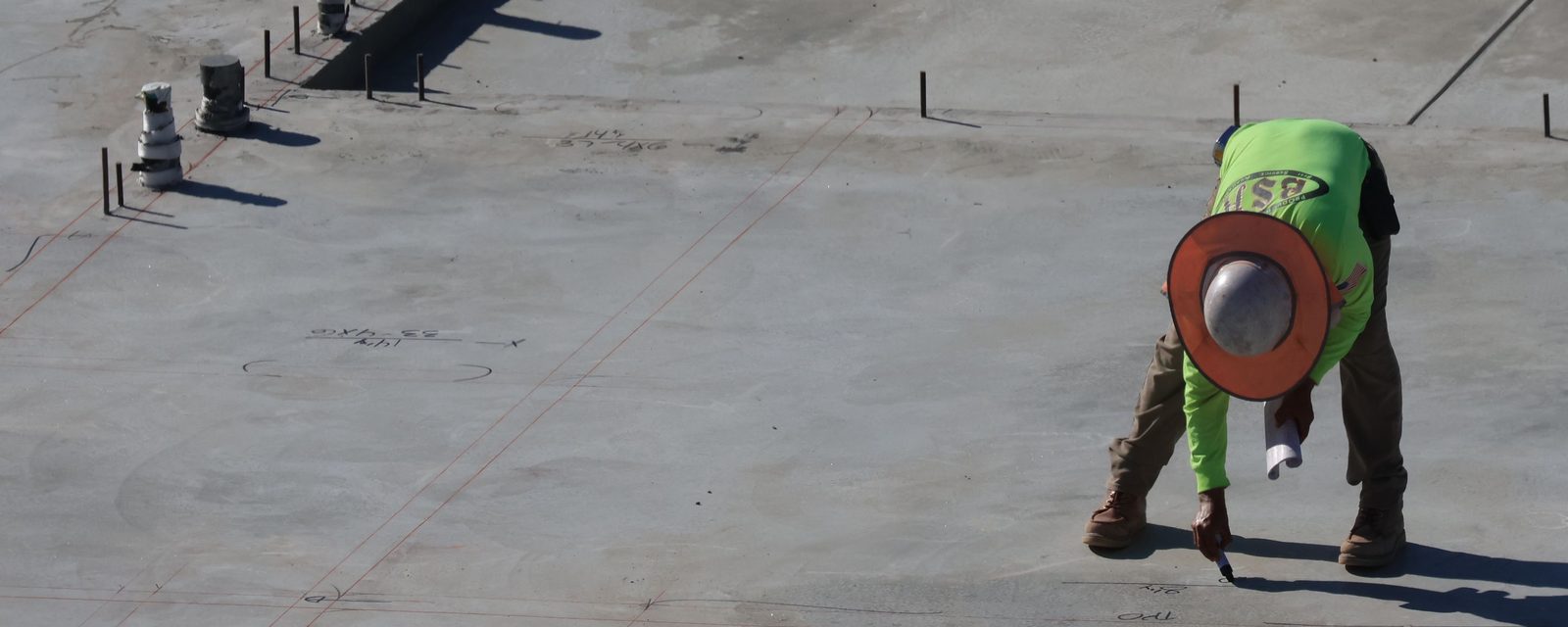

Lines and grades from your approved plans, marked on the ground so crews build where the engineer designed.
What is construction staking?
A construction staking survey is the fieldwork that transfers approved plans to the ground, setting stakes, nails, and paint marks that show contractors where, and at what elevation, to build grading, foundations, curbs, and underground pipes.
Often called construction layout, stakeout, or construction surveying, it starts once plans are approved and repeats before each phase of work, from rough grading to paving. Each crew then builds to the marks set for its phase.
Staking sets out new work. It does not establish property lines or locate buried utilities: when a building must meet setbacks, the lot lines come from a boundary survey first.
Deliverables
What's included in construction staking
The proposal sets which items each visit covers. A typical project draws on:
-
Control & benchmarks
Control points and temporary benchmarks tied to the design survey, set clear of the work.
-
Grading stakes
Slope and rough grade stakes, then blue-top hubs set to finished pad, subgrade, or base grade.
-
Building layout
Building corners or grid lines on offset, set from the approved site and foundation plans.
-
Utility staking
Line and grade stakes for sewer, storm drain, and water lines, with inverts at structures.
-
Curb, gutter & paving
Flow line or top-of-curb offsets, plus driveways, curb ramps, and pavement grades.
-
Walls & anchor bolts
Retaining wall lines, footings, and anchor bolt layout for metal buildings.
-
Cut sheets
A sheet for each visit listing point, station, offset, design elevation, and cut or fill.
-
As-built checks
Measured pads, forms, or installed pipe inverts compared with the plans, where scoped.
When do you need construction staking?
Order staking once plans are approved, and schedule each visit as an area of the site becomes ready.
-
Grading and site work
Slope, rough grade, and finish grade stakes guide earthwork to the approved grading plan.
-
New buildings, additions, and ADUs
Foundation corners placed from the approved plans, measured from property lines where setbacks matter.
-
Street and frontage improvements
Curb, gutter, sidewalk, and pavement grades staked from the approved improvement plans.
-
Sewer, storm drain, and water lines
Line and grade stakes so gravity pipes meet design inverts between manholes and inlets.
-
Metal buildings and anchor bolts
Building lines and anchor bolts staked from the approved metal building foundation design.
Process
How construction staking works
The first three steps set up the project; the last two repeat for each phase of construction.
Review plans and files
We check that the plans and CAD files are approved and current, flag conflicts to the design engineer, and compute stake points, offsets, and grades.
Confirm survey control
Control from the topographic survey behind the design is recovered and checked, or new control set, so stakes match the ground the design was drawn on.
Reference monuments
Where street, right-of-way, or easement work could disturb controlling survey monuments, they are located and referenced first, and a corner record or record of survey filed.
Set stakes by phase
Crews typically set stakes with GNSS (satellite positioning) receivers or robotic total stations, checking each point against its computed position.
Deliver cut sheets
Each visit ends with a cut sheet. Disturbed stakes are reset on request, and pad, form, or as-built checks follow where scoped.
California rules
California requirements for construction staking
The state rules that matter most:
-
Bus. & Prof. Code §8726, §6731.1
Staking is licensed work
California law treats setting the line and grade of curbs, pipes, pads, buildings, and other improvements as both land surveying and civil engineering. A licensed land surveyor or civil engineer must do it or be in responsible charge; crew members work as the licensee's subordinates (§8730(b)(2)).
-
Bus. & Prof. Code §8726, §8731
Property-line staking is boundary work
Staking property corners, setting boundary monuments, or locating a building from property lines depends on where the boundary is. That is land surveying reserved for licensed land surveyors and civil engineers registered before January 1, 1982 (§8726(a)(3), (a)(5); §8731).
-
Bus. & Prof. Code §8771
Monuments must be protected
Before street, highway, right-of-way, or easement work, including resurfacing, controlling monuments must be located and referenced by a licensed land surveyor or authorized civil engineer, and a corner record or record of survey filed. Monuments the work could destroy are reset or witnessed, and a record filed, before the certificate of completion is recorded. The public agency doing or permitting the work must ensure this.
-
Gov. Code §4216, §4216.2
Stakes are not a utility locate
Except in an emergency, the excavator must outline the dig area in white and notify the 811 center at least two working days, and no more than 14 calendar days, before digging. Operators then mark their lines or confirm they have none there. The marking duty does not cover gravity sewer or storm drain lines.
Requirements vary by city and county. Agencies set their own staking request procedures, cut sheet formats, and stake color codes. On its own projects, Caltrans usually furnishes control stakes, and the contractor sets working stakes from them.
Sources & references
- Business and Professions Code §8726, practice of land surveying (California Legislative Information)
- Business and Professions Code §6731.1, surveying within civil engineering (California Legislative Information)
- Business and Professions Code §8771, preserving survey monuments during construction (California Legislative Information)
- Government Code §§4216–4216.24, excavation notice and utility marking (811) (California Legislative Information)
- Surveys Manual, Chapter 12: Construction Surveys (California Department of Transportation)
Last reviewed .
Construction staking FAQs
Who can do construction staking in California?
Construction staking in California must be done by, or under the responsible charge of, a licensed land surveyor or civil engineer (Business and Professions Code §8726, §6731.1). Staking measured from property lines, such as building setbacks, is boundary work limited to licensed land surveyors and civil engineers registered before January 1, 1982 (§8731). Caltrans requires stakes tied to California Coordinate System coordinates to be set under the responsible charge of someone authorized to practice land surveying.
What is the difference between construction staking and a boundary survey?
Construction staking marks where new improvements will go, using the approved plans. A boundary survey determines where the property lines are, from deeds, recorded maps, and field monuments. A building that must meet setbacks needs both, and when lot corners are missing or disputed, the boundary work comes first.
What do the markings on a grade stake mean?
Grade stake markings tell the crew where a design point is and how far to cut or fill to reach it. A stake usually shows the plan station, the offset to the feature, and a cut (C) or fill (F) from the reference point, often a hub beside the stake, to design grade.
Is construction staking still needed with GPS machine control?
Construction staking still has a role on machine-control projects, usually with fewer grade stakes and more control points. Machine guidance steers equipment to a 3D design model, which must match the approved plans and share the project control. Caltrans's Surveys Manual notes that machine guidance does not eliminate staking for structures, drainage, and utilities.
What happens if construction stakes are knocked out?
Construction stakes that are disturbed or destroyed should be reset before work continues, because a moved stake can put a curb, pipe, or footing in the wrong place. The construction contract sets who pays for restaking. Resetting a survey monument is licensed land surveying (Business and Professions Code §8726).
What affects the cost and schedule of construction staking?
The cost and schedule of construction staking depend on the number of improvements to stake, how many visits the construction sequence needs, stake spacing and tolerances, whether usable survey control and CAD files exist, site access and readiness, and any restaking. Share the approved plans, CAD files, and the contractor's schedule; the proposal then sets scope and timing.
