Metal Building Foundation Design
Engineered footing, slab, and anchor rod details for your steel building, sized to its column reactions and the soil at your site.

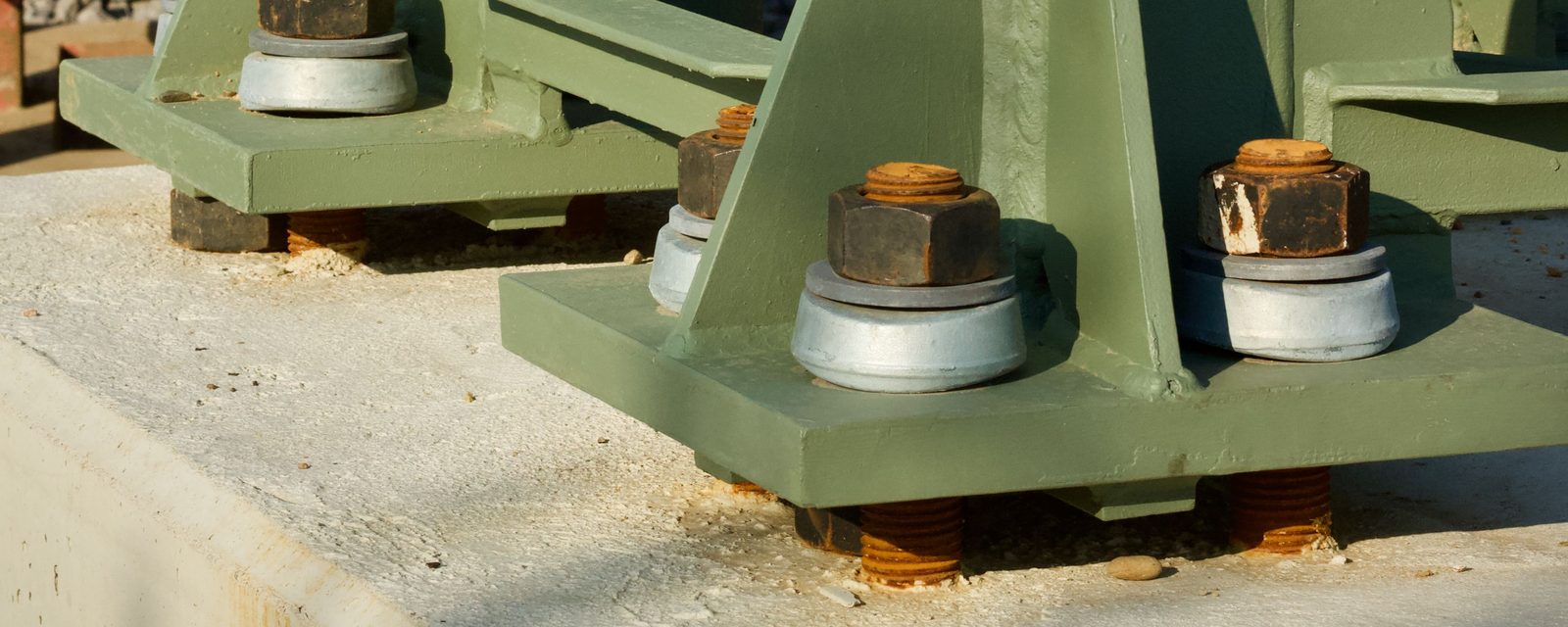

What is metal building foundation design?
A metal building foundation design is the set of engineered plans and calculations for the footings, slab, and anchor rods that carry a pre-engineered steel building's column loads into the soil at a specific site.
The manufacturer of a pre-engineered metal building (PEMB) designs the steel frame. It supplies the loads each column puts on the foundation (column reactions) and an anchor rod plan (often called an anchor bolt plan) showing only rod location, diameter, and projection. Unless the building order includes foundation design, the owner's engineer of record designs the foundation itself.
Metal Building Manufacturers Association practice also has the owner furnish a current survey by a licensed land surveyor showing property lines, encroachments, easements, and benchmarks, with the property lines staked. A boundary survey prepared with a current title report provides the lines, easements, and corner staking; a topographic survey adds benchmarks and grades.
Deliverables
What's included in a metal building foundation design
Scope is set for each project and written into the proposal. A foundation package typically covers:
-
Foundation plan
Footing locations, sizes, and reinforcement keyed to the manufacturer's column lines.
-
Anchor rod embedment
Rod embedment and anchorage details, which the manufacturer's anchor rod plan does not include.
-
Thrust & uplift restraint
Hairpin bars, tie rods, grade beams, or larger footings that resist frame thrust and wind uplift.
-
Slab on grade
Slab thickness, reinforcement, and joint layout for the vehicles, racking, or equipment it carries.
-
Structural calculations
Calculations for the manufacturer's reactions, soil values, and current code loads, signed and sealed.
-
Construction details
Footing sections, slab edges at door openings, and embedded items for the concrete contractor.
-
Design criteria & notes
Design loads, concrete and rebar specifications, and the special inspections the plans require.
-
Plan check responses
Written responses and revised sheets for building department comments on the foundation.
When do you need a metal building foundation design?
Every steel building that needs a permit needs a site-specific foundation design.
-
Shops, garages, and barns
Vehicle and equipment loads set the slab; wind uplift on a light frame sizes the footings.
-
Warehouses and light industrial buildings
Forklift traffic, racking, dock doors, and pits shape the slab and footing design.
-
Sloped or filled building pads
Earthwork and fill depth affect footing depth and soils review. See grading plans.
-
A building ordered before the site plan
Setbacks, access, drainage, and room for erection equipment decide where the footprint fits. See site layout.
-
A changed order or a new manufacturer
Final reactions can differ from quote-stage estimates, so check the foundation before concrete.
-
Adding roof and paving area
Added impervious area can trigger post-construction stormwater rules. See stormwater calculations.
Process
How metal building foundation design works
Five steps from the manufacturer's drawings to anchor rods set in concrete.
Collect the building data
We review the manufacturer's anchor rod plan, final reactions, and drawings, plus design criteria such as code edition and risk category.
Confirm site and soils
A soils report, where required or available, sets bearing values and seismic site class. A topographic survey and site plan fix grades and the footprint.
Select the foundation system
Footings, thrust restraint, and slab are sized for gravity, uplift, seismic, and thrust loads under the 2025 California Building Code (CBC) and ASCE 7-22.
Seal and support plan check
Plans and calculations are checked against the manufacturer's drawings, sealed by the engineer in responsible charge, and revised for plan check comments.
Stake and verify anchor rods
Building lines and anchor rods are set through construction staking and checked before any steel is set.
California rules
California requirements for metal building foundations
Steel building foundations require a licensed design professional. The rules that matter most:
-
Bus. & Prof. Code §§6731–6737.1
A licensed professional seals the foundation
Civil engineering includes design work for foundations and buildings (§6731). Those plans and calculations must be prepared by or under the responsible charge of a licensed civil engineer, then signed and sealed (§6735). Licensed architects practicing architecture are exempt from engineering registration (§6737). The exemption for unlicensed plan preparers covers only certain woodframe buildings, not steel ones (§6737.1).
-
2025 CBC · ASCE/SEI 7-22 §11.4.2.1
Designed to the 2025 CBC and ASCE 7-22
The 2025 California Building Code applies to permit applications submitted on or after January 1, 2026, and uses ASCE/SEI 7-22 for design loads. Unless a geotechnical report sets the site class, seismic design uses the most critical of Site Classes C, CD, and D; a report is required where Site Class DE, E, or F soils are present.
-
Cal. Building Code §1803
A geotechnical investigation, unless waived
A geotechnical investigation (soils report) is required unless the building official waives it based on satisfactory data from nearby sites (§1803.2). In Seismic Design Categories C through F, it must evaluate slope instability, liquefaction, settlement, and fault or lateral-spread displacement (§1803.5.11).
-
Cal. Building Code §105.2
Most steel buildings need a permit
The CBC's model exemption covers one-story detached accessory structures, such as tool and storage sheds, up to 120 square feet (§105.2). Cities and counties adopt and often amend it, and agricultural exemptions vary. Exempt structures may still be regulated by the California Wildland-Urban Interface Code (Title 24, Part 7).
Requirements vary by city and county. Confirm your building department's design criteria, soils report triggers, and submittal list before ordering.
Sources & references
- Business and Professions Code §6735, civil engineering plans and calculations (California Legislative Information)
- California Building Standards Code (Title 24), 2025 edition (California Building Standards Commission)
- 2025 California Building Code, Chapter 18: Soils and Foundations (ICC Digital Codes, free public viewer)
- Building Design: 2025 Code Criteria (County of Santa Cruz)
- Common Industry Practices, 2024 Edition, §3.2.2 and §6.3 (Metal Building Manufacturers Association)
Last reviewed .
Metal building foundation FAQs
Does a metal building kit come with foundation plans?
A metal building kit usually comes with an anchor rod plan (often called an anchor bolt plan) and column reactions, not a foundation design. The Metal Building Manufacturers Association's Common Industry Practices say the manufacturer is not responsible for the foundation. The owner's engineer of record designs it for those loads and the site's soil.
Who can design a metal building foundation in California?
A metal building foundation in California is typically designed by a licensed civil or structural engineer, who signs and seals the plans and calculations (Business and Professions Code §6735). Licensed architects practicing architecture are also exempt from engineering registration (§6737). Unlicensed people may prepare plans only for certain woodframe buildings, not steel ones (§6737.1).
Do I need a soils report for a metal building?
A soils report, formally a geotechnical investigation, is required under the 2025 California Building Code unless the building official waives it based on satisfactory data from nearby sites (§1803.2). Without a report, seismic design uses the most critical of Site Classes C, CD, and D, and footings use the code's presumptive soil values (§1806.2). A report is needed where Site Class DE, E, or F soils are present.
How thick does the slab need to be for a metal building?
The slab thickness for a metal building is set by the engineer from the loads the slab carries, such as vehicles, forklifts, racking, and equipment, and from the soil and base, not a standard number. A slab that ties the columns together through hairpins is structural, so saw cuts or trenches need an engineer's review first.
What affects the cost and schedule of a metal building foundation design?
The cost and schedule of a metal building foundation design depend on building size and frame type, the final column reactions, soil conditions and any soils report, slab loads such as forklifts or pits, and local submittal rules. Share the site address, the manufacturer's anchor rod plan and reactions, and any soils report; the proposal then sets scope and timing.
